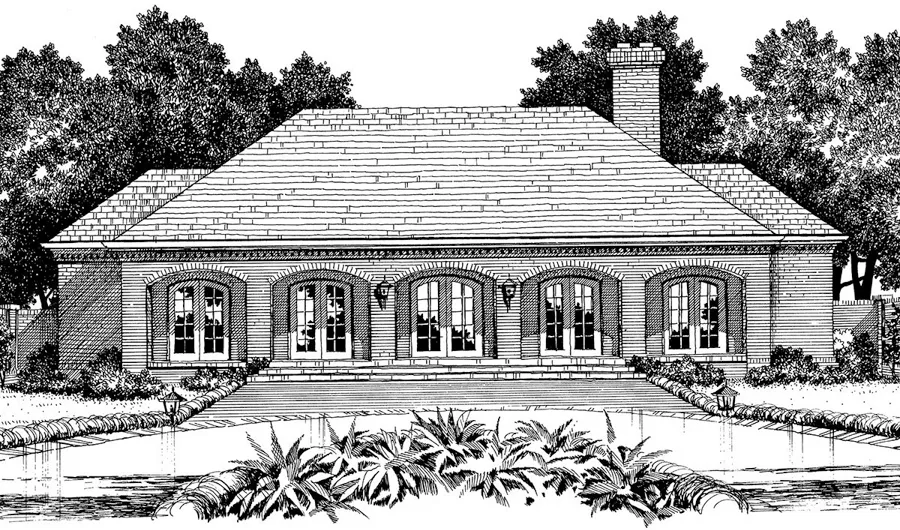

Courtyard Garden House Plan

https://houseplans.southernliving.com/web/image/product.template/10174/image_1920?unique=ab1c686

Details: 2,397 Sq Ft, 3 Bedrooms, 2.5 Baths

$ 1,510.00 1510.0 USD $ 1,510.00

$ 0.00

Not Available For Sale

  • Plan Package
  • Foundation
  • Additional Sets
  • Additional Options

This combination does not exist.

Contact Us
Foundation: Crawlspace

Floor Plan Features of the Courtyard Garden House Plan

Specifications

Floors: 1
Bedrooms: 3
Bathrooms: 2.5
Foundation(s): Crawlspace

Square Feet

Main Floor: 2,397
Total Conditioned: 2,397
Garage: 752

Dimensions

Width: 63'-6"
Depth: 57'-0"
Height: 21'-0"

House Levels

Level Name Ceiling Heights
Main Floor 10'-0"

Construction

Wall Construction: 2x4
Exterior Finish: Brick
Roof Pitch: 8:12

Features

Kitchen: Breakfast Nook, U-Shaped
Primary Bedroom: Tub, Double Sink, Walk-in Closet, Outdoor Access
Additional: Fireplace, Porch

Garage

Type Size
Detached 2 - Stall

Description

Our Courtyard Garden House folds around a protected garden, which can be planted for easy maintenance and year-round appeal. A true indoor/outdoor house, most rooms enjoy either a beautiful view of the garden court or direct access to it. The courtyard garden and its enclosed gallery form the focal point for the design.

The plan divides the house into three basic spaces: private area, which includes master bedroom and bath; public area, which includes foyer, gallery, half bath, and living and dining rooms; and family area, which contains kitchen, breakfast room/den, two bedrooms, and a bath.

The living room features arched windows and a formal fireplace set between built-in bookcases. Enter a small library to the right of the living room through a wide arched opening.

Designed by David Sulivan.

CAD File
Source drawing files of the plan. This package is best provided to a local design professional when customizing the plan with architect.

PDF Plan Set
Downloadable file of the complete drawing set. Required for customization or printing large number of sets for sub-contractors.

Construction Set
Five complete sets of construction plans, when building the house as-is or with minor field adjustments. This set is stamped with a copyright.

Pricing Set
Recommended for construction bids or pricing. Stamped "Not For Construction". The purchase price can be applied toward an upgrade to other packages of the same plan.
