Bedrooms:
4
actual,
5
possible
Baths:
2
full,
1
half
Floors:
2
Garage:
1
Foundations:
Crawlspace
Master Location:
Main Floor
Laundry Location:
Main Floor
Fireplaces:
0
Pine Island Retreat
Plan SL-1454
Details
|
Basics
Style / Influences
Recreation/Vacation Southern Craftsman Cottage
Kitchen Features
Open Layout
Snack
Pantry
Master Suite Features
Walk-in Closet Dual Sinks Shower Spa/Whirlpool
Additional Features
Porch
|
Square Footage

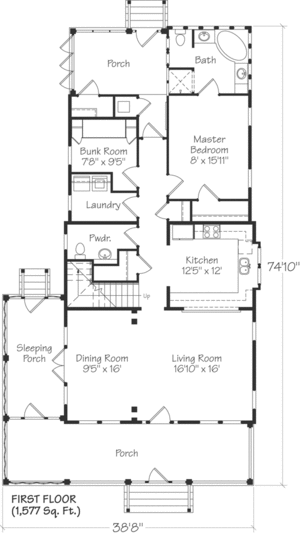

Main Floor:
1577

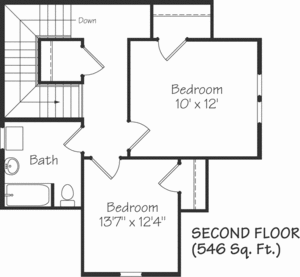

Upper Floor:
546
Total Heated Square Footage:
2123
Garage:
0
Dimensions
39 '- 0 " W x 75 '- 0 " D x 28 "- 0 " H
Plate Heights
Main Floor:
10.0
'
Upper Floor:
9.5
'
Construction
Ext. Wall Construction:
2x6
Roof Framing:
Gable
|
Description
Plan Packages
Reproducible + 1 set
Best for construction / customization. (Includes one free blueprint)
Mirrored (reverse print) sets
(Floor plans are reversed from plan as shown.
All text and dimensions read backwards.)
Construction Set - 8 Sets
Eight full sets of construction drawings.
per additional set.
Mirrored (reverse print) sets
(Floor plans are reversed from plan as shown.
All text and dimensions read backwards.)
Planning Set
Recommended for review/study only. Stamped "Not For Construction". Includes all exterior elevations and floor plans. Purchase price will be applied to any upgrade order for the same plan, based on availability (8 sets, CAD or Reproducible)
per additional set.
Mirrored (reverse print) sets
(Floor plans are reversed from plan as shown.
All text and dimensions read backwards.)
Study Plan (Downloadable)
Letter size document with floor plans and exterior elevations and color photography (if available)
